Segmentation images are 2D images containing segmentation information. They are 2D tensors with a single channel of type uint8 or uint16 containing the class ID for each pixel. A corresponding color and/or label can be mapped to class IDs using an annotation context.

Components and APIs

Primary component: tensor

Secondary components: draw_order

Python APIs: log_segmentation_image

Rust API: Tensor

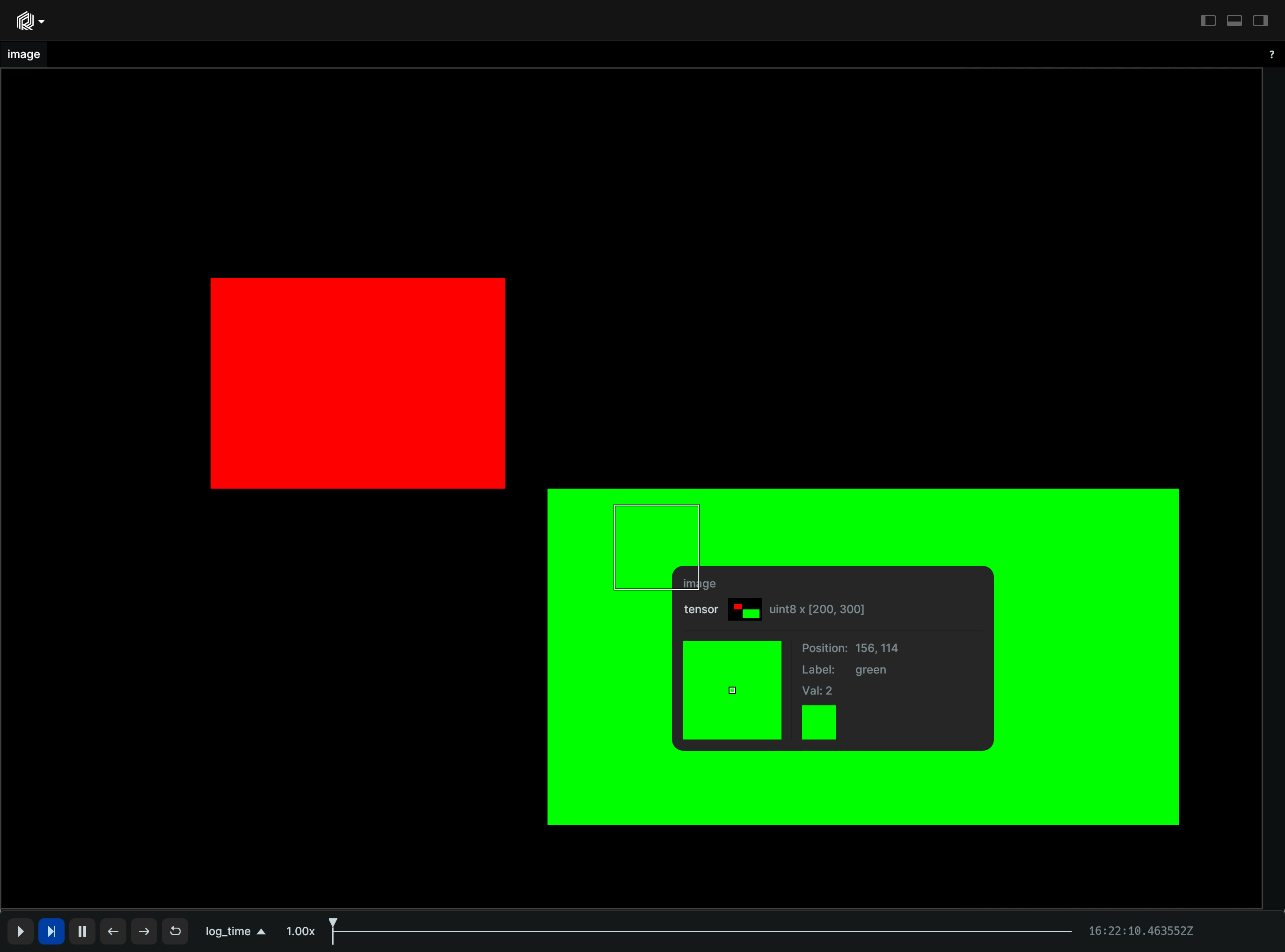

Simple example

"""Create and log a segmentation image.""" import numpy as np import rerun as rr # Create a segmentation image image = np.zeros((200, 300), dtype=np.uint8) image[50:100, 50:120] = 1 image[100:180, 130:280] = 2 rr.init("rerun_example_segmentation_image", spawn=True) # Assign a label and color to each class rr.log_annotation_context( "/", [ rr.ClassDescription(info=rr.AnnotationInfo(1, "red", (255, 0, 0))), rr.ClassDescription(info=rr.AnnotationInfo(2, "green", (0, 255, 0))), ], ) rr.log_segmentation_image("image", np.array(image))
